What is Electron Beam Irradiation Processing?
The electron beam (E-beam) irradiation process uses high-energy electrons for a variety of applications, such as the sterilization of single-use medical devices, contamination control of consumer products, and modification of materials, such as heat shrink tubing, wire and cables and molded parts.
How Does the Electron Beam Irradiation Process Work?
In the electron beam process, a product is bombarded with high-energy electrons, resulting in a cascade of these electrons moving through the target material.
The E-beam process utilizes high energy electrons as its radiation source.
The electrons, which are produced by normal electrical current, are accelerated to near the speed of light by means of an accelerator.
The electrons are focused to a scan horn of a defined size and scanned in a sweeping motion, creating a curtain of electrons.

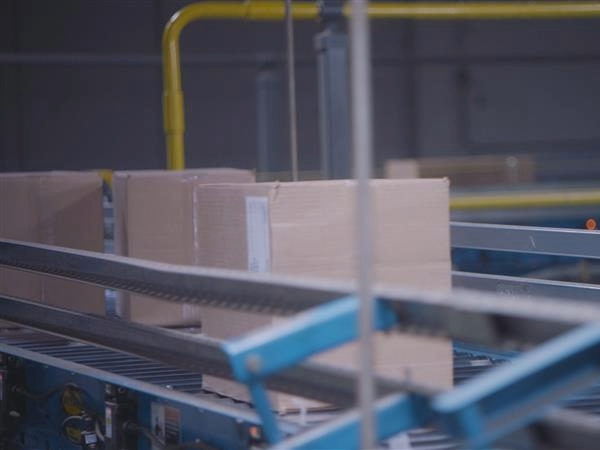

The product is then conveyed through the scan curtain at a tightly controlled and measured speed.
The process itself takes place behind a radiation shield, typically a large concrete structure, which prevents radiation from leaving the cell.
As scanning occurs, the accelerated electrons inactivate any viable microorganisms.
What are the Benefits of Electron Beam?
E-beam irradiation can penetrate a wide range of materials and deliver the required irradiating dose in just a few seconds, meaning the entire process can take place in minutes.
As a result of this short exposure period, the following benefits have been found:
- Optimized processing times
- Improved supply chain efficiencies
- Considerably less oxidative damage to the product
- Reduced color change in any present polymers
- No chemical residuals or induced radioactivity remain on processed products
Standards for Electron Beam Irradiation:
Electron beam sterilization is supported by the internationally recognized consensus standard, ISO 11137, which describes the approach to validating a process to achieve a defined sterility assurance level (SAL).
Electron Beam Irradiation Support Services:
In addition to irradiation sterilization, STERIS AST provides our Customers with laboratory testing and technical support solutions at every stage of the sterilization design process, from product development through routine processing.
Our Radiation TechTeamTM guides Customers through the irradiation validation process, provides solutions for unique project needs, and supports routine processing through periodic dose audits.
Our Radiation Technology Centers (RTCs) supports our Customers with radiation test activities such as product trials, dose establishment and dose verification.
The RTCs provide high-precision dose delivery for validation, dose mapping, dose audit, and research purposes.
Our laboratory testing services provide Customers with:
- Radiation validation support
- Microbiological testing, including bioburden testing, test of sterility, microbial identification and more
- Bacterial endotoxin testing
- Product and packaging testing.including accelerated & real-time aging, transportation/distribution testing, sterile barrier integrity and more
As part of our complete radiation validation program, we will develop a protocol, assemble all testing and validation data, summarize results and make recommendations based on your product, as well as provide ongoing support through a dedicated Radiation TechTeam Project Manager.
What is Electron Beam Irradiation Used for?
Electron beam irradiation is a flexible and high-speed process that can be used for a variety of applications, including:
- Sterilization of single-use medical devices and pharmaceuticals
- Contamination control in packaging, cosmetics, and toiletries
- Strengthening of polymers due to cross-linking and/or breaking down of polymers


Technology Variables
- ORIENTATION TO BEAM
- BEAM ENERGY
- BEAM POWER
- PRODUCT CONVEYANCE
Product Considerations
-
MATERIAL COMPATIBILITY
- Compatible with most materials
-
DENSITY
- Moderate to low penetration on dense products
Possible Effects
Lower possible materials effects than gamma and X-ray
Exposure Time
- MINUTES
- (time varies based on dose requirements)
Why STERIS AST?
As a global leading sterilization and decontamination specialist, STERIS AST has over 40 years experience in providing safe and effective electron beam irradiation sterilization.
